CADprofi Architectural - automates the process of creating construction drawings, cross-sections and elevations and allows you to draw walls, insert doors and windows, create architectural dimensioning and descriptions, as well as, use objects from the library of furniture and other equipment. A unique program feature is the possibility to create evacuation and safety plans.

Key Benefits

No items found.

Features

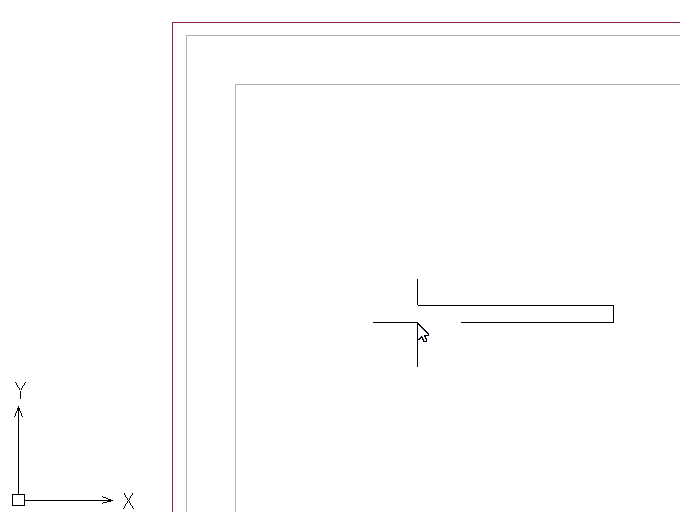

  • Drawing of single and multi-layered walls with the ability to define any material and thickness of each wall layer.
  • Drawing walls along the selected edge with the possibility to determine the offset from the indicated points or other objects.
  • Parametric woodwork (doors, windows, garage doors) with automatic detection of the wall thickness. Plan, cross-section, and elevation views are available. For parametrical objects user can specify any dimensions and properties.
  • Dynamic determination of the direction of doors insertion that facilitate the correct positioning.
  • Automatic defining and marking of rooms with surface calculation.
  • Designing of stairs with the possibility of determining the dimensions and number of treads. Various elements of stairs, from which user can build stairs with any number of treads, are available.
  • Insertion of roofs with the possibility of calculating surface slopes, roof angles and its height.
  • Architectural dimensioning that is suited for construction projects. Program allows user to change styles and dimension units regardless of which designing unit was used in the drawing (e.g. dimensioning in cm of drawing that were prepared in mm). A unique feature is the possibility to convert an ordinary CAD dimensioning into architectural dimensioning.
  • Level symbols with automatic filling of indicated points ordinates.
  • Comprehensive Architectural symbol library of furniture, sanitary equipment, household appliances, plants, ventilation ducts, carpentry and woodwork markings, and many many more
  • Drawing and editing emergency escape routes and plans.
  • Tools for full description and projects detailing.
  • Automatic numbering of objects.
  • Possibility to create bill of materials and specifications that can be either printed or exported to multiple formats including pdf, rtf (doc), xls, xml, csv, html and more.
  • Automatic creation of graphical legends.

‍
